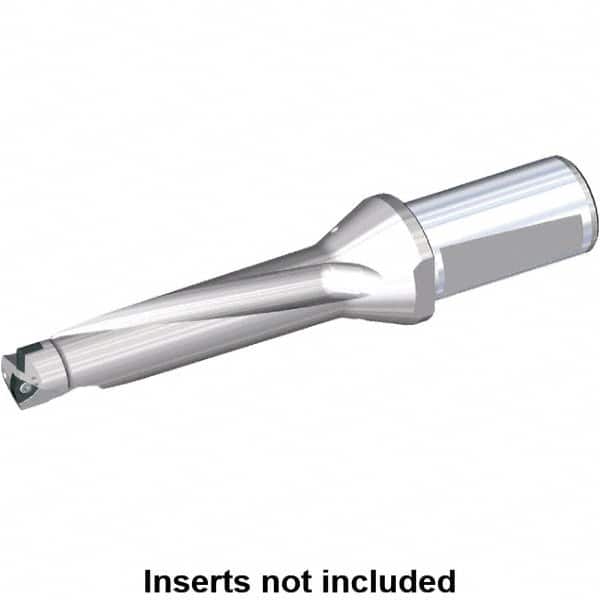

Kennametal - 64mm Max Drill Depth, 4xD, 16mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Whistle Notch Shank
Item #: 31647258
Brand: Kennametal
Model #: 6075756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 16.00 |
| Maximum Drill Depth (mm) | 64.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 20.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 17.00 |
| Overall Length/Projection (mm) | 133.00 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | DFTX202.. |
| Flute Length (mm) | 70.00 |
| Body Length (mm) | 88.00 |
| Shank Length (mm) | 45.00 |
| Series | Drill-Fix |
