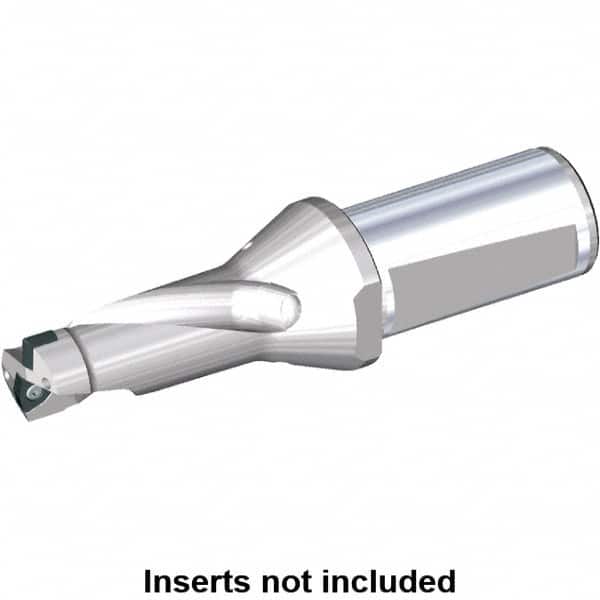

Kennametal - 74mm Max Drill Depth, 2xD, 37mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 31647472
Brand: Kennametal
Model #: 5692334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 37.00 |
| Maximum Drill Depth (mm) | 74.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 38.00 |
| Overall Length/Projection (mm) | 175.00 |
| Insert Compatibility (Outside or Peripheral) | SPPX1204.. |
| Insert Compatibility | DFT06T3.. |
| Flute Length (mm) | 99.00 |
| Body Length (mm) | 117.00 |
| Shank Length (mm) | 58.00 |
| Series | Drill-Fix |
