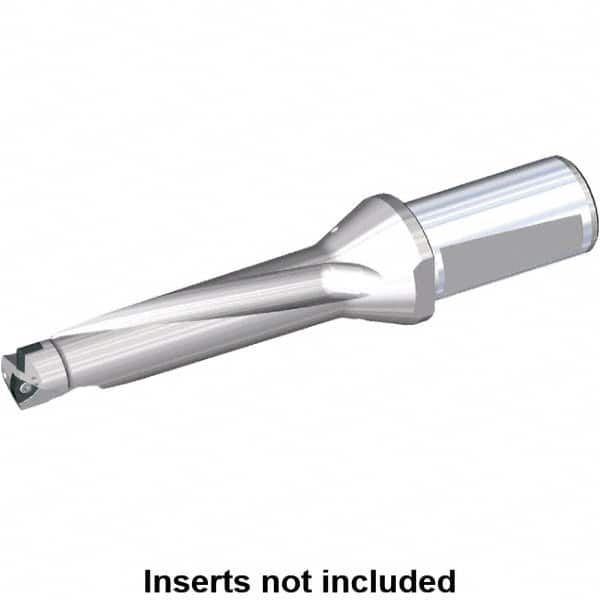

Kennametal - 108mm Max Drill Depth, 4xD, 28mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 31647696
Brand: Kennametal
Model #: 5692273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (mm) | 28.00 |
| Maximum Drill Depth (mm) | 108.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 28.00 |
| Overall Length/Projection (mm) | 201.00 |
| Insert Compatibility (Outside or Peripheral) | SPPX09T3.. |
| Insert Compatibility | DFT05T3.. |
| Flute Length (mm) | 125.00 |
| Body Length (mm) | 143.00 |
| Shank Length (mm) | 58.00 |
| Series | Drill-Fix |
