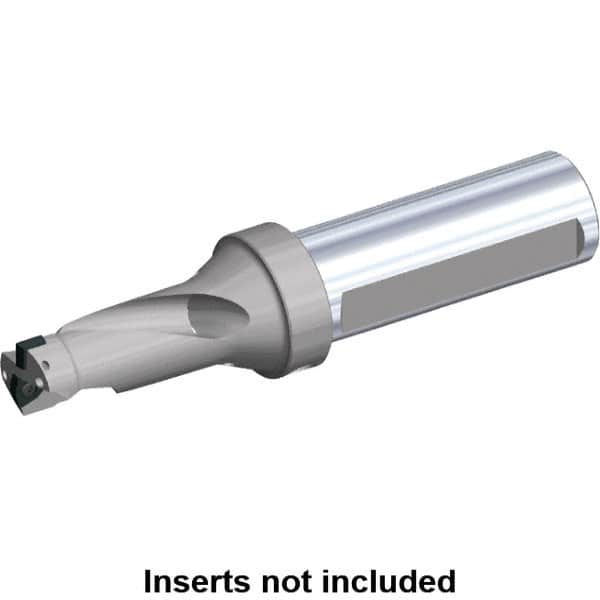

Kennametal - 2.876" Max Drill Depth, 2xD, 1.478" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Flange Shank
Item #: 31648157
Brand: Kennametal
Model #: 5691843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DFSP |
| Drill Diameter (Decimal Inch) | 1.4780 |
| Maximum Drill Depth (Decimal Inch) | 2.8760 |
| Shank Type | Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4780 |
| Overall Length/Projection (Decimal Inch) | 7.8760 |
| Insert Compatibility (Outside or Peripheral) | SPPX1204.. |
| Insert Compatibility | DFT06T3.. |
| Flute Length (mm) | 95.00 |
| Body Length (Decimal Inch) | 4.6260 |
| Shank Length (Decimal Inch) | 3.2500 |
| Series | Drill-Fix |
