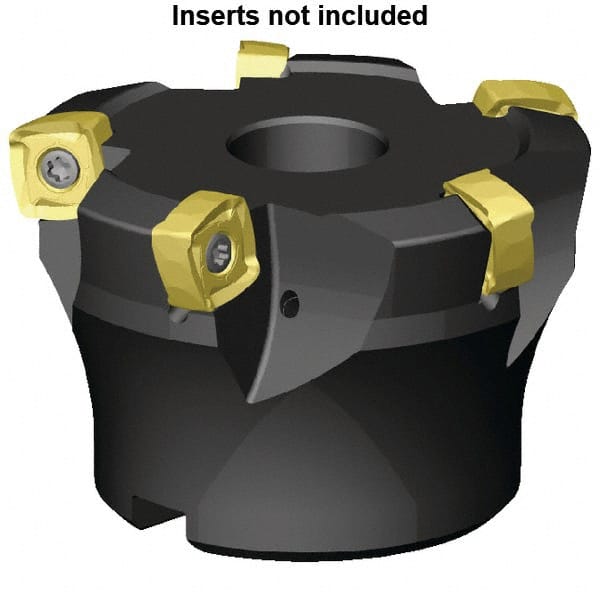

Kennametal - 6 Inserts, 4" Cutter Diam, 0.098" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 50mm High, 7793VXO12 Toolholder, XO..1205.. Inserts, Series 7793
Item #: 31681000
Brand: Kennametal
Model #: 5676104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.3980 |
| Cutting Diameter (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.00 |
| Series | 7793 |
| Cutter Style | 7793VXO12 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | XO..1205.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 14000 |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 3.8360 |
| Through Coolant | Yes |
