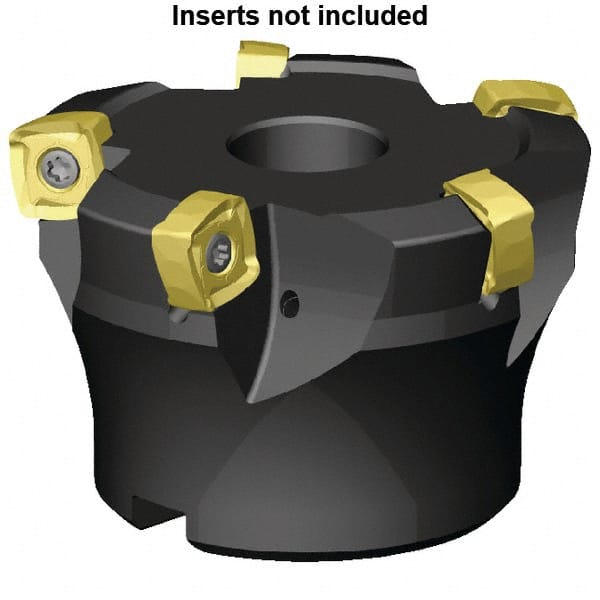

Kennametal - 5 Inserts, 2-1/2" Cutter Diam, 0.098" Max Depth of Cut, Indexable High-Feed Face Mill - 1" Arbor Hole Diam, 40mm High, 7793VXO12 Toolholder, XD..1205.. Inserts, Series 7793
Item #: 31681125
Brand: Kennametal
Model #: 5675982
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.8990 |
| Cutting Diameter (Inch) | 2-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 40.00 |
| Series | 7793 |
| Cutter Style | 7793VXO12 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | XD..1205.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 19000 |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.3400 |
| Through Coolant | Yes |
