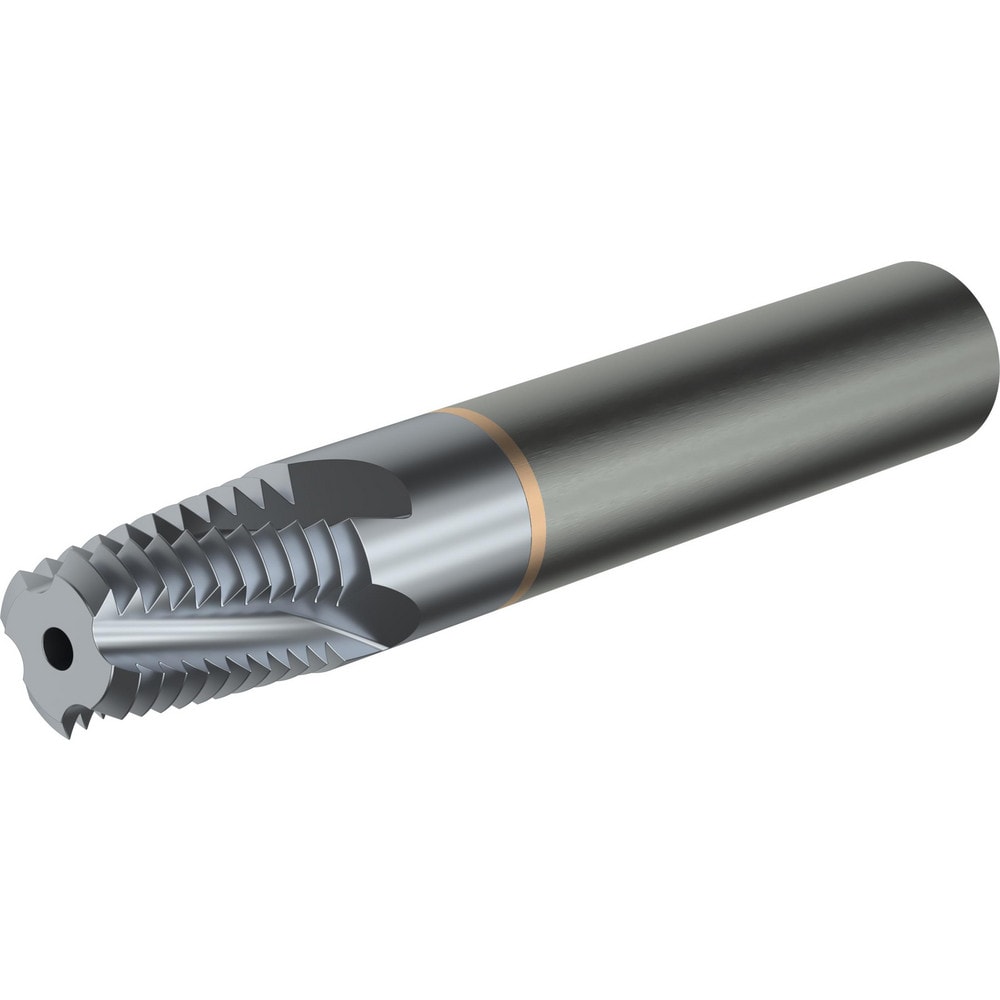

Brand: Vargus / Part #: 81237
Item #: 88216056
Brand: Vargus
Model #: 81237
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | 1/2-14 |
| Thread Depth (Decimal Inch) | 0.75 |
| Thread Type | Internal |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.625 |
| Cutting Diameter (mm) | 14.25 |
| Cutting Diameter (Decimal Inch) | 0.5610 |
| Length of Cut (mm) | 19.0500 |
| Length of Cut (Inch) | 3/4 |
| Minimum Nominal Diameter (Inch) | 1/2 |
| Shank Length (Decimal Inch) | 0.4790 |
| Shank Length (mm) | 53.000 |
| Overall Length (mm) | 79.0000 |
| Overall Length (Decimal Inch) | 3.1102 |
| Number Of Flutes | 5 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Thread Length (mm) | 19.05 |
| Thread Length (Decimal Inch) | 0.7500 |
