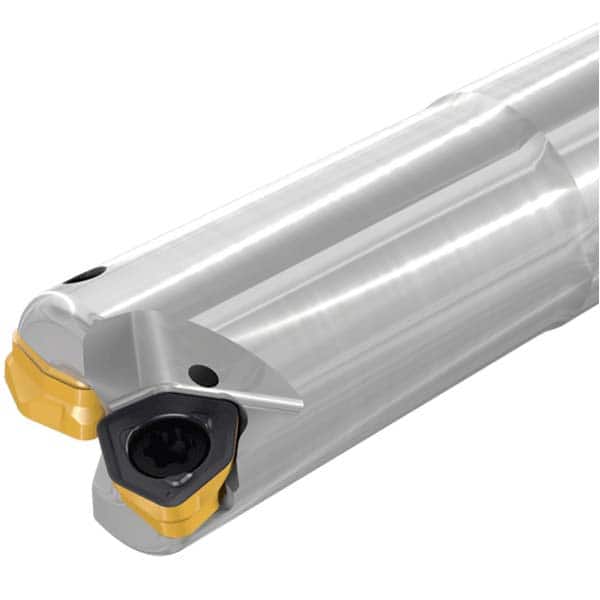

Iscar - Indexable High-Feed End Mills; Cutting Diameter (Inch): 0.2000 ; Cutting Diameter (Decimal Inch): 0.2000 ; Maximum Depth of Cut (mm): 0.60 ; Shank Type: Cylindrical ; Shank Diameter (Decimal Inch): 0.375 ; Number of Cutter Inserts: 2
Item #: 31697428
Brand: Iscar
Model #: 3343675
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (Inch): 0.2000 ; Cutting Diameter (Decimal Inch): 0.2000 ; Maximum Depth of Cut (mm): 0.60 ; Shank Type: Cylindrical ; Shank Diameter (Decimal Inch): 0.375 ; Number of Cutter Inserts: 2
| Cutting Diameter (Inch) | 0.2000 |
| Cutting Diameter (Decimal Inch) | 0.2000 |
| Maximum Depth of Cut (mm) | 0.60 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.375 |
| Number of Cutter Inserts | 2 |
| Insert Style | FFT3 |
| Toolholder Style | FFT3 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 2 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.0000 |
| Toolholder Material | Steel |
