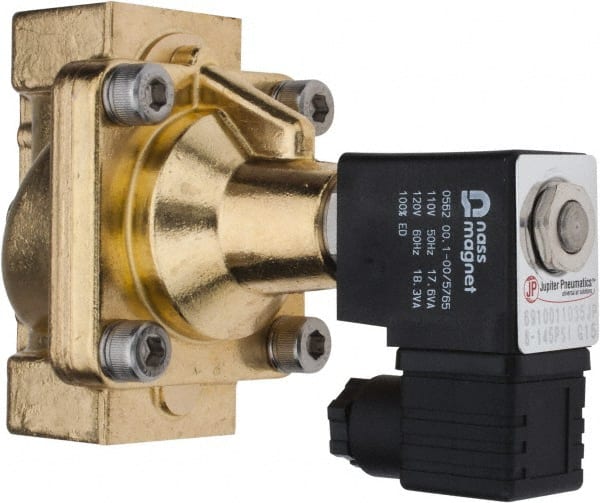

PRO-SOURCE - 1", 2/2 Way Steam Series Stacking Solenoid Valve - 110 VAC, 12 CV Rate, 4.98" High x 3.94" Long
Item #: 31880396
Brand: PRO-SOURCE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2/2 Way Steam Series |
| Actuator Type | Pilot |
| Number of Positions | 2 |
| Number of Positions | 2 Position |
| Valve Type | 2-Way |
| Return Type | Air Pilot |
| Voltage | 110 VAC |
| CV Rating | 12.000 |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1 |
| Cubic Feet per Minute | 176.58 |
| Length (Decimal Inch) | 3.940 |
| Height (Inch) | 4.98 |
| Maximum Temperature (F) | 356 |
| Maximum Working Pressure (psi) | 145 |
| For Use With | Compressed Air; Hot Water; Steam |
