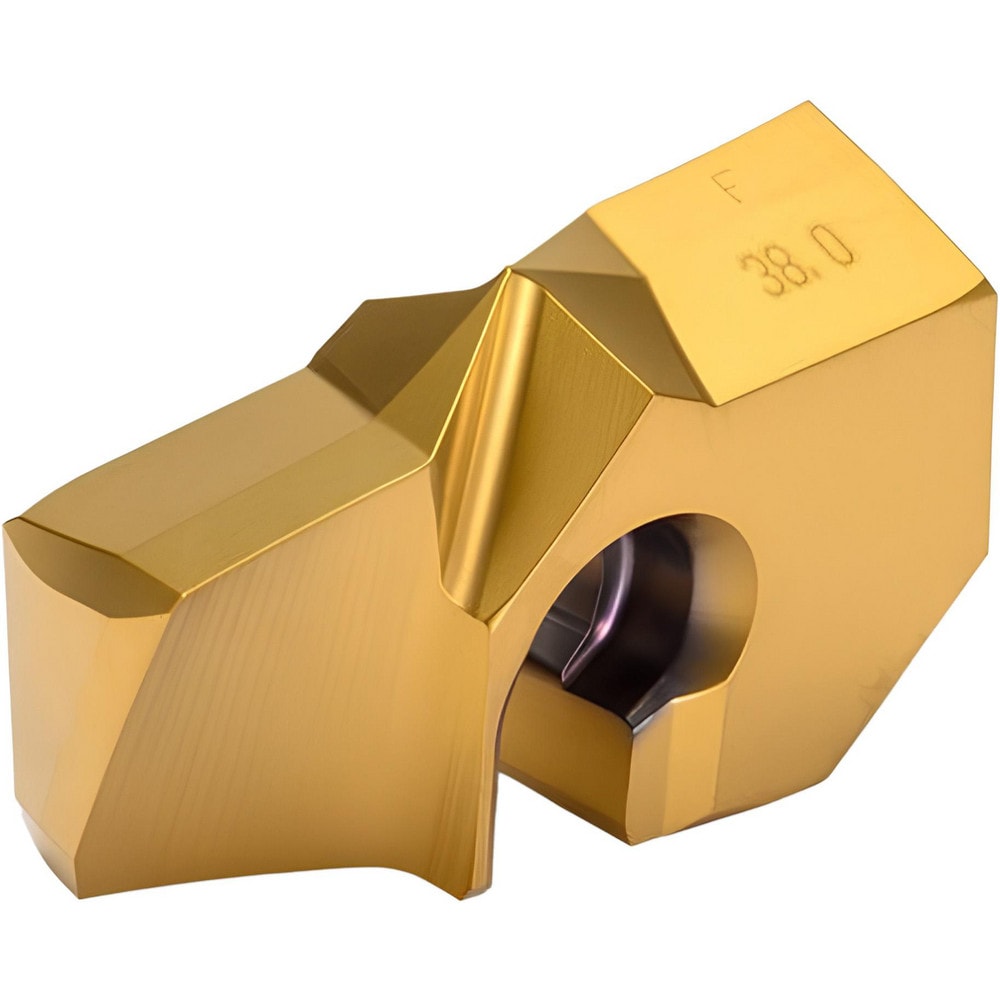

Brand: Ingersoll Cutting Tools / Part #: 6313525
Item #: 95972162
Brand: Ingersoll Cutting Tools
Model #: 6313525
Product Specifications
| Maximum Drill Diameter (mm) | 39.50 |
| Point Angle | 0.00 |
| Diameter (mm) | 39.5000 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | LPF |
| Coating Process | PVD |
| Insert Seat Size | 38 |
| Primary Workpiece Material | Hi Temp Alloys; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Height (mm) | 17.0700 |
| Head Length (mm) | 17.07 |
| Cutting Diameter (mm) | 39.50 |
| Insert Holding Method | Twist |
| ISO Number | LPF3950R01 IN2505 |
| Coolant Through | Yes |
| Flute Length (mm) | 13.64 |
| Point Type | Flat Bottom |
| Overall Length/Projection (mm) | 17.07 |
| Style | LPF |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
