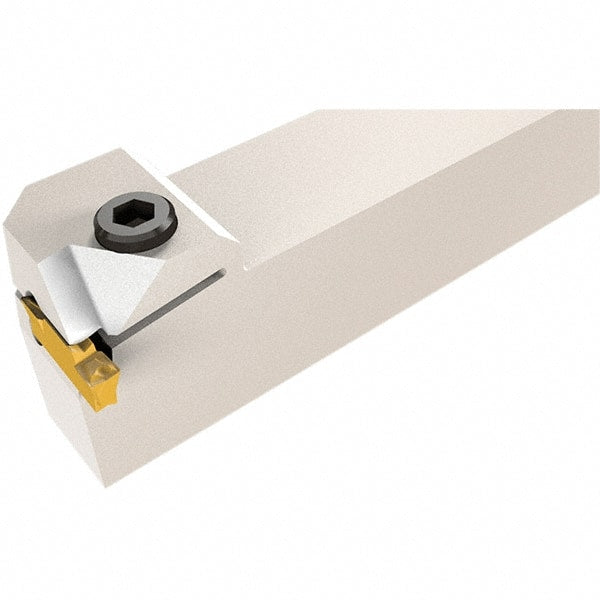

Iscar - HFHP, External, Left Hand, 5mm Max Depth of Cut, 3 to 3mm Groove Width, Indexable Grooving Tool Holder - HFPL Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 32116923
Brand: Iscar
Model #: 2500262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | HFHP |
| Insert Compatibility | HFPL |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 30.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1929 |
| Maximum Groove Outside Diameter (mm) | 2000.00 |
| Minimum Axial Groove Inside Diameter(mm) | 20.00 |
| Head Height (Decimal Inch) | 1.3386 |
| Head Height (mm) | 34.00 |
| Complete Insert Compatibility | HFPL 3003; HFPL 3015; HFPL 4004; HFPL 4020; HFPL 5004; HFPL 5025; HFPL 6004; HFPL 6030 |
