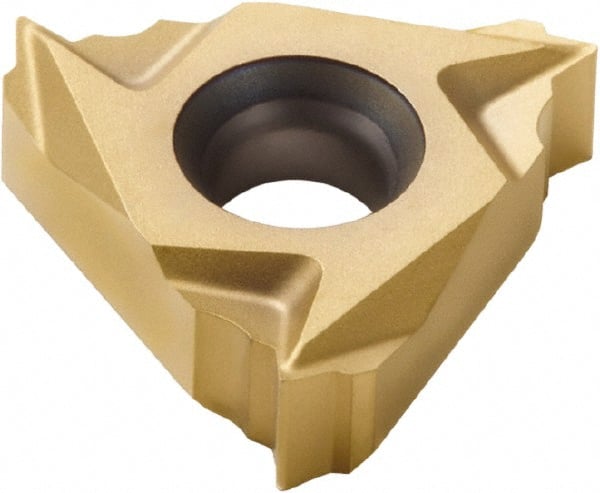

Seco - 16NL Internal Left Hand ISO Laydown Threading Insert - Grade CP300, TiAlN/TiN Coated Carbide, 9.53mm Inscribed Circle
Item #: 32155921
Brand: Seco
Model #: 75990
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16NL |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Manufacturer's Grade | CP300 |
| Pitch (mm) | 2.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1366 |
| Thickness (mm) | 3.47 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.1700 |
