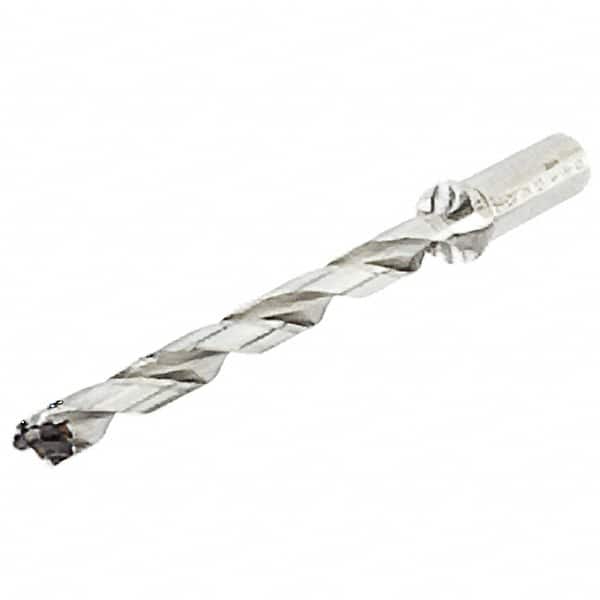

Iscar - 11.5 to 11.9mm Diam, 12xD, 140.1mm Max Drill Depth, 16mm Shank Diam, 202.6mm OAL, Replaceable Tip Drill - FCP, HCP-2M, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M, QCP-2M Insert, 11 Seat Size, DCN Toolholder, Series SumoCham
Item #: 32187577
Brand: Iscar
Model #: 3316088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (mm) | 11.90 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 140.10 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; HCP-2M; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 11 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (mm) | 2.09 |
| Flute Length (mm) | 140.10 |
| Body Length (mm) | 154.60 |
| Overall Length (mm) | 202.60 |
| Shank Length (mm) | 48.00 |
