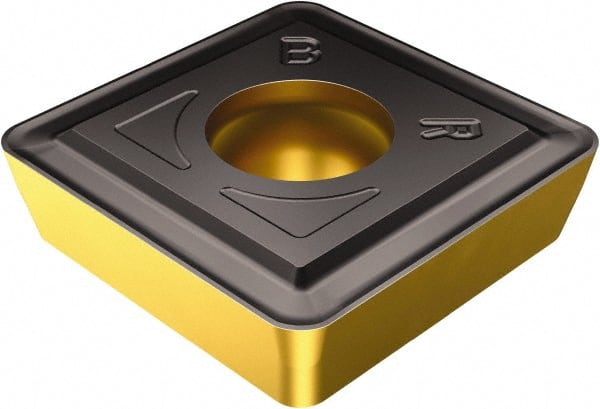

Sandvik Coromant - SPMT1212 BR Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 90° Square, 12.65mm Inscr Circle, 4mm Thick, 3/64" Corner Radius
Item #: 32220501
Brand: Sandvik Coromant
Model #: 7207488
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 1212 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.65 |
| Inscribed Circle (Decimal Inch) | 0.4980 |
| Thickness (Decimal Inch) | 0.1575 |
| Thickness (mm) | 4.00 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.2 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | BR |
| ISO Number | SPMT1212-BR 4325 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroBore 111 |
| Insert Holding Method | Screw |
| Shape | Square |
