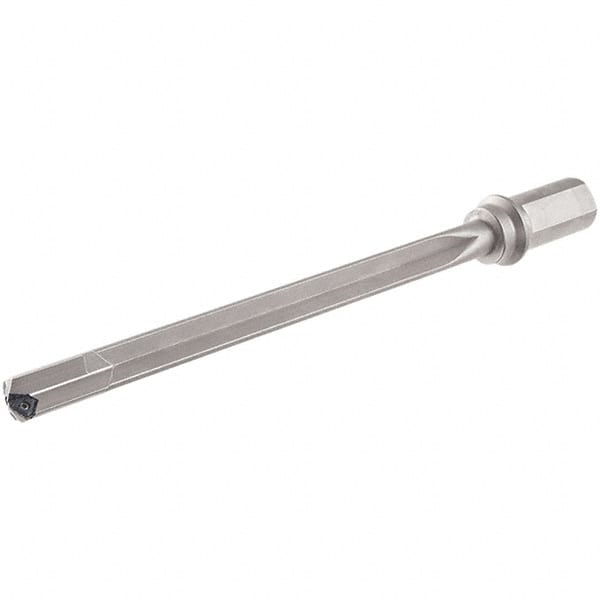

Iscar - 420mm Max Drill Depth, 15xD, 28mm Diam, Indexable Insert Drill - 1 Insert, 40mm Shank Diam, Weldon Flat Shank
Item #: 32327470
Brand: Iscar
Model #: 4820502
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | MCTR |
| Drill Diameter (mm) | 28.00 |
| Maximum Drill Depth (mm) | 420.00 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Left Hand |
| Drill Depth by Diameter Ratio | 15xD |
| Insert Size (mm) | 3.60 |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 547.00 |
| Insert Compatibility | TOGT 12 |
| Flute Length (mm) | 477.00 |
| Body Length (mm) | 477.00 |
| Shank Length (mm) | 70.00 |
| Series | TriDeep |
