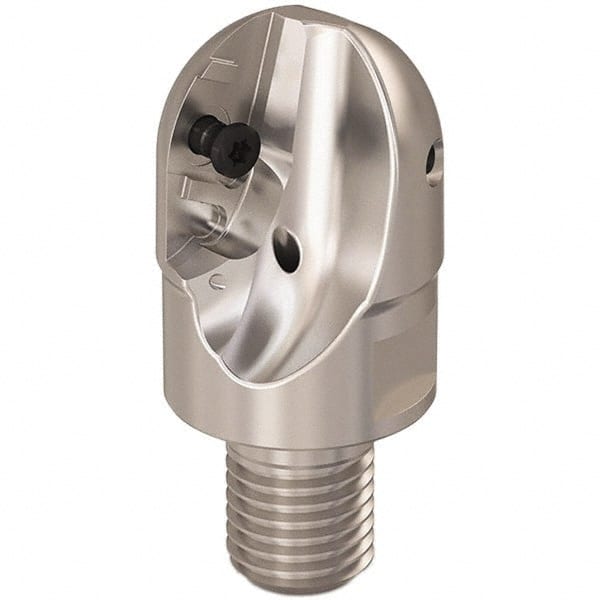

Seco - 40mm Cut Diam, 35mm Max Depth of Cut, 54.9mm OAL, Indexable Ball Nose End Mill - 54.9mm Head Length, M20 Combimaster Shank, R218.20 Toolholder, 218.20 Insert
Item #: 32426926
Brand: Seco
Model #: 06192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Shank Type | Combimaster |
| Modular Connection Thread Size | M20 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 |
| Toolholder Style | R218.20 |
| Series | R218.20 |
| Overall Length (mm) | 54.90 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 54.90 |
| Number of Side Inserts Used on Toolholder | 0 |
| Maximum RPM | 7200 |
