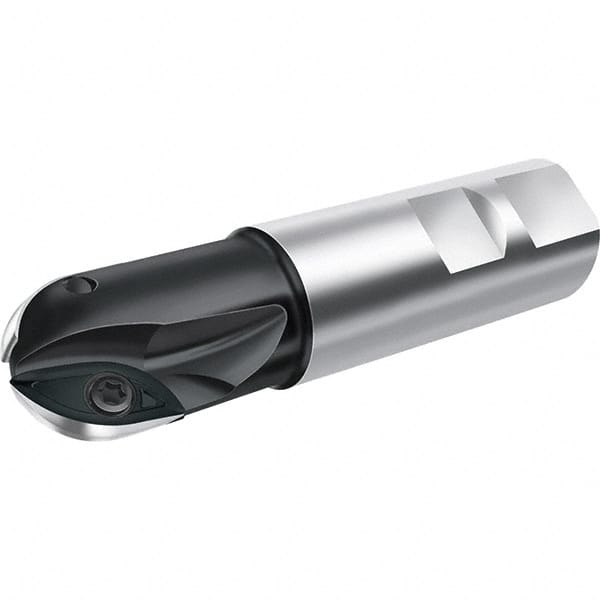

Walter - 25.4mm Cut Diam, 20mm Max Depth of Cut, 25.4mm Shank Diam, 97.15mm OAL, Indexable Ball Nose End Mill - 14,300 Max RPM
Item #: 32604779
Brand: Walter
Model #: 5105414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.4 |
| Cutting Diameter (Decimal Inch) | 1.000 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.000 |
| Series | F2339-UW-FORMA |
| Overall Length (mm) | 97.15 |
| Overall Length (Decimal Inch) | 3.8250 |
| Toolholder Material | Steel |
| Maximum RPM | 14300 |
