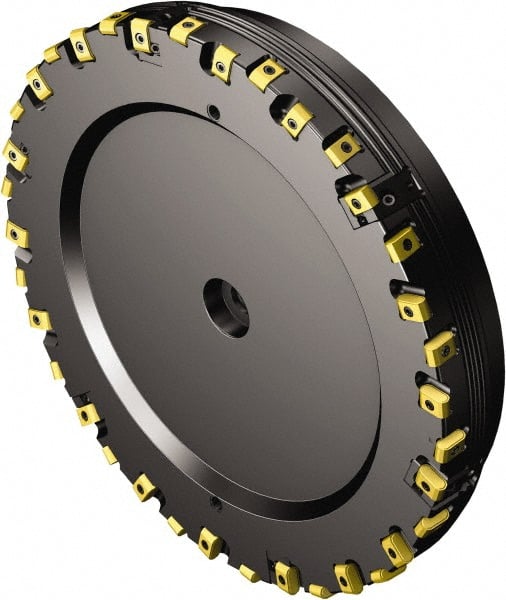

Sandvik Coromant - 315mm Cut Diam, 268.65mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 18 Inserts, CoroMill 425 -1707 Insert, Left Hand Cut, Series CoroMill 425
Item #: 32632606
Brand: Sandvik Coromant
Model #: 6717988
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 315 |
| Cutting Diameter (Decimal Inch) | 12.4016 |
| Arbor Hole Diameter (mm) | 268.65 |
| Arbor Hole Diameter (Decimal Inch) | 10.5768 |
| Lead Angle | 25 |
| Insert Compatibility | CoroMill 425 -1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Number of Cutter Inserts | 18 |
| Maximum Body Diameter (Decimal Inch) | 12.4449 |
| Maximum RPM | 1520 |
| Cutting Direction | Left Hand |
| Toolholder Material | Steel |
| Maximum RPM | 1520 |
| Toolholder Material | Steel |
| Through Coolant | No |
