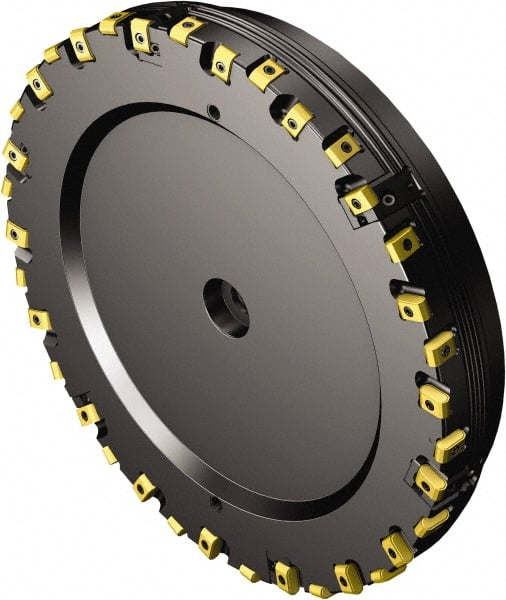

Sandvik Coromant - 250mm Cut Diam, 203.65mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 15 Inserts, CoroMill 425 -1707 Insert, Left Hand Cut, Series CoroMill 425
Item #: 32632622
Brand: Sandvik Coromant
Model #: 6717986
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250 |
| Cutting Diameter (Decimal Inch) | 9.8425 |
| Arbor Hole Diameter (mm) | 203.65 |
| Arbor Hole Diameter (Decimal Inch) | 8.0177 |
| Lead Angle | 25 |
| Insert Compatibility | CoroMill 425 -1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Number of Cutter Inserts | 15 |
| Maximum Body Diameter (Decimal Inch) | 9.8858 |
| Maximum RPM | 1910 |
| Cutting Direction | Left Hand |
| Toolholder Material | Steel |
| Maximum RPM | 1910 |
| Toolholder Material | Steel |
| Through Coolant | No |
