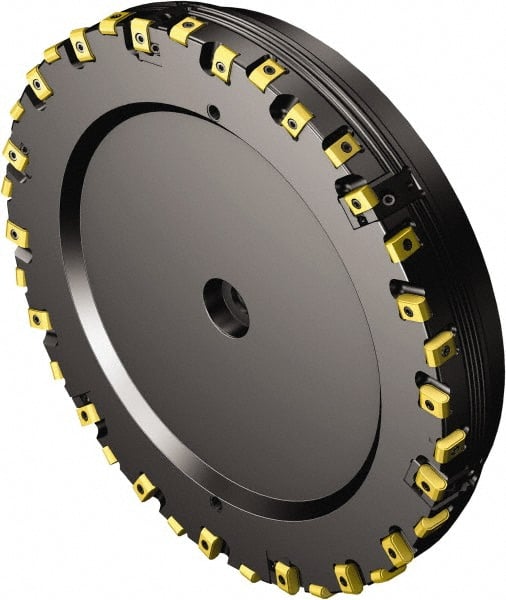

Sandvik Coromant - 508mm Cut Diam, 453.65mm Arbor Hole, 0.9mm Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 27 Inserts, CoroMill 425 -1707 Insert, Right Hand Cut, Series CoroMill 425
Item #: 32632655
Brand: Sandvik Coromant
Model #: 6717983
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 508 |
| Cutting Diameter (Decimal Inch) | 20 |
| Arbor Hole Diameter (mm) | 453.65 |
| Arbor Hole Diameter (Decimal Inch) | 17.8602 |
| Lead Angle | 25 |
| Insert Compatibility | CoroMill 425 -1707 |
| Series | CoroMill 425 |
| Maximum Depth of Cut (mm) | 0.90 |
| Number of Cutter Inserts | 27 |
| Maximum Body Diameter (Decimal Inch) | 20.0433 |
| Maximum RPM | 940 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
| Maximum RPM | 940 |
| Toolholder Material | Steel |
| Through Coolant | No |
