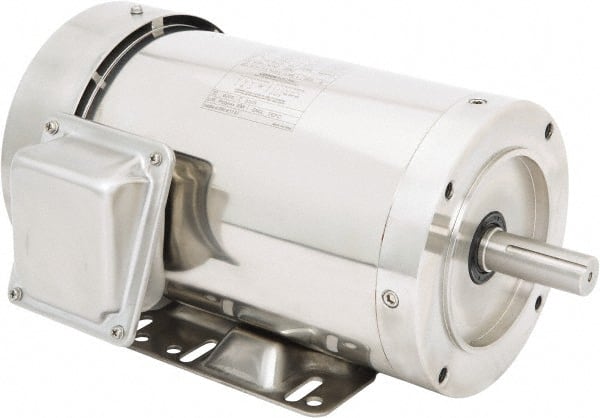

Leeson - 2 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 145TC Frame, 7/8" Shaft Diam, C-Face with Base Mount, TEFC Enclosure
Item #: 32741340
Brand: Leeson
Model #: 191491.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 2 |
| Minimum Horsepower | 2 |
| Name Plate RPMs | 1750 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 145TC |
| Full Load Amperage | 5.8 |
| Mount Type | C-Face w/Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Service Factor Rating | 1.15 |
| Frame Material | Stainless Steel |
| Insulation Class | F |
| Applications | Washdown |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
