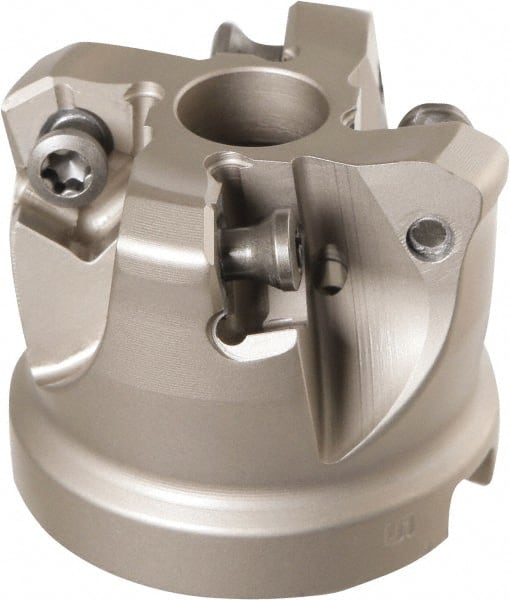

Iscar - 4 Inserts, 1.02" Cutter Diam, 0.106" Max Depth of Cut, Indexable High-Feed Face Mill - 1/2" Arbor Hole Diam, 1-1/4" High, MF FWX-07 Toolholder, H600 WXCU Inserts, Series Helido
Item #: 32752529
Brand: Iscar
Model #: 3106850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0200 |
| Maximum Depth of Cut (Decimal Inch) | 0.1060 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 1.2500 |
| Series | Helido |
| Cutter Style | MF FWX-07 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | H600 WXCU |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 1.5000 |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 040310HP; H600 WXCU 040310T; H600 WXCU 05T312HP; H600 WXCU 05T312T; H600 WXCU 070515HP; H600 WXCU 070515T; H600 WXCU 080612HP; H600 WXCU 080612T; H600 WXCU 080616RM |
| Manufacturers Catalog Number | MF FWX D1.50-04-0.50-07 |
