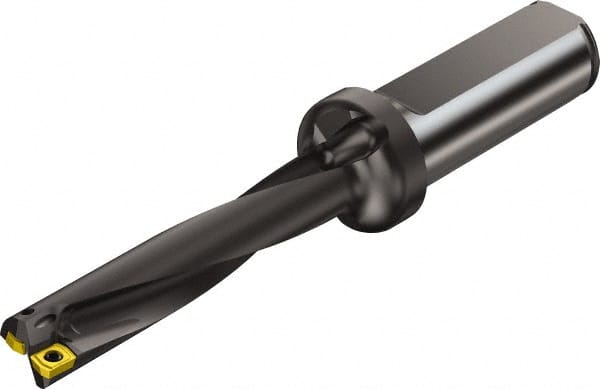

Sandvik Coromant - 2.6" Max Drill Depth, 5xD, 1/2" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 32769283
Brand: Sandvik Coromant
Model #: 5723502
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (Inch) | 1/2 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 2.6000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.2 |
| Insert Size (Decimal Inch) | 0.0866 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5197 |
| Maximum Drill Diameter (mm) | 12.70 |
| Overall Length/Projection (mm) | 128.28 |
| Overall Length/Projection (Decimal Inch) | 5.0505 |
| Insert Compatibility (Outside or Peripheral) | 01P |
| Flute Length (mm) | 73.26 |
| Flute Length (Decimal Inch) | 2.8843 |
| Body Length (Decimal Inch) | 2.6000 |
| Body Length (mm) | 66.04 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Radius (Decimal Inch) | 0.2500 |
| Series | CoroDrill 880 |
