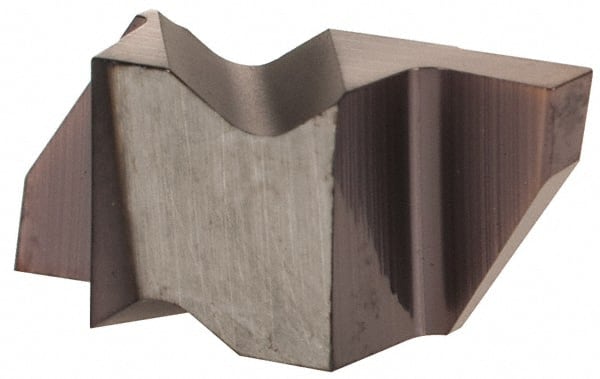

Hertel - 2047IG Grade HC215, 1.19mm Cutting Width Carbide Grooving Insert - 1.27mm Max Depth of Cut, Left Hand, TiAlN Finish
Item #: 32775744
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IG |
| Insert Size | 2047 |
| Material | Carbide |
| Cutting Width (mm) | 1.19 |
| Cutting Width (Decimal Inch) | 0.0470 |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | HC215 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.2190 |
| Lead Angle | 0 |
| Insert Seat Size | 2 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0020 |
| Maximum Corner Radius (Decimal Inch) | 0.0050 |
| Coating Process | PVD |
| Series | HertelNotch |
| Overall Width (Decimal Inch) | 0.1500 |
