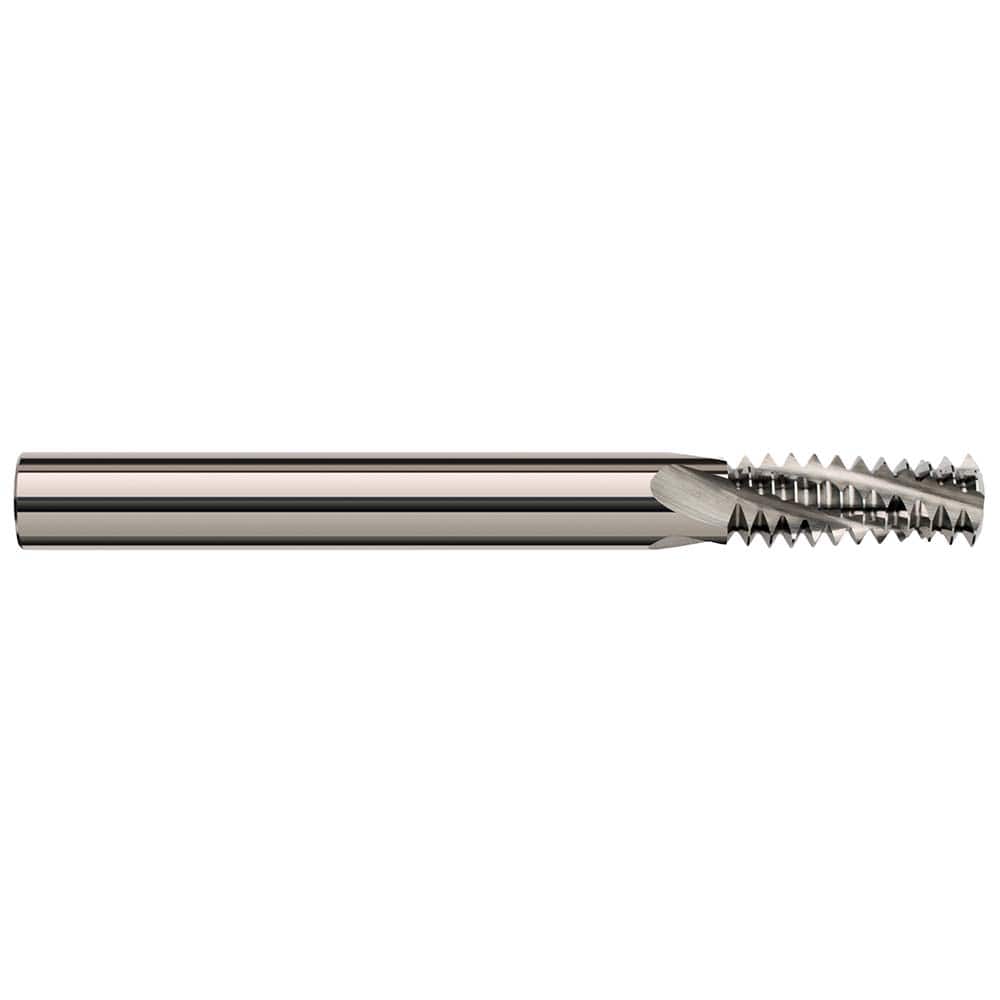

Harvey Tool - 5-44 Internal/External 44 TPI 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 32788358
Brand: Harvey Tool
Model #: 70020
Product Specifications
| Threads Per Inch | 44 |
| Material | Solid Carbide |
| Thread Size (Inch) | 5-44 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0950 |
| Length of Cut (Decimal Inch) | 0.2280 |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Minimum Nominal Diameter | #5 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
