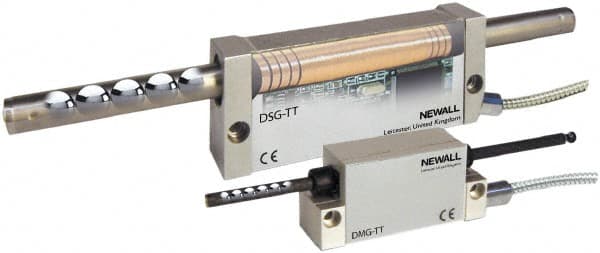

Newall - 320" Max Measuring Range, 5 & 10 µm Resolution, 330" Scale Length, Inductive DRO Linear Scale - 10 µm Accuracy, IP67, 11-1/2' Cable Length, Series DSG-TT
Item #: 32805368
Brand: Newall
Model #: DSG-TTVCMA32000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Scale Type | Inductive |
| Maximum Measuring Range (Inch) | 320 |
| Resolution (Micron) | 10.00; 5.00 |
| Resolution (mm) | 0.002/0.001 |
| Resolution (Decimal Inch) | 0.0002/0.0005 |
| Scale Length (Inch) | 330 |
| Accuracy (micrometer) | 10.00 |
| Accuracy (Decimal Inch) | 0.000400 |
| Series | DSG-TT |
| IP Rating | IP67 |
| Cable Connection Type | DE-9P |
| Cable Length (Decimal Inch) | 138.0000 |
| Cable Length (Feet) | 11.50 |
