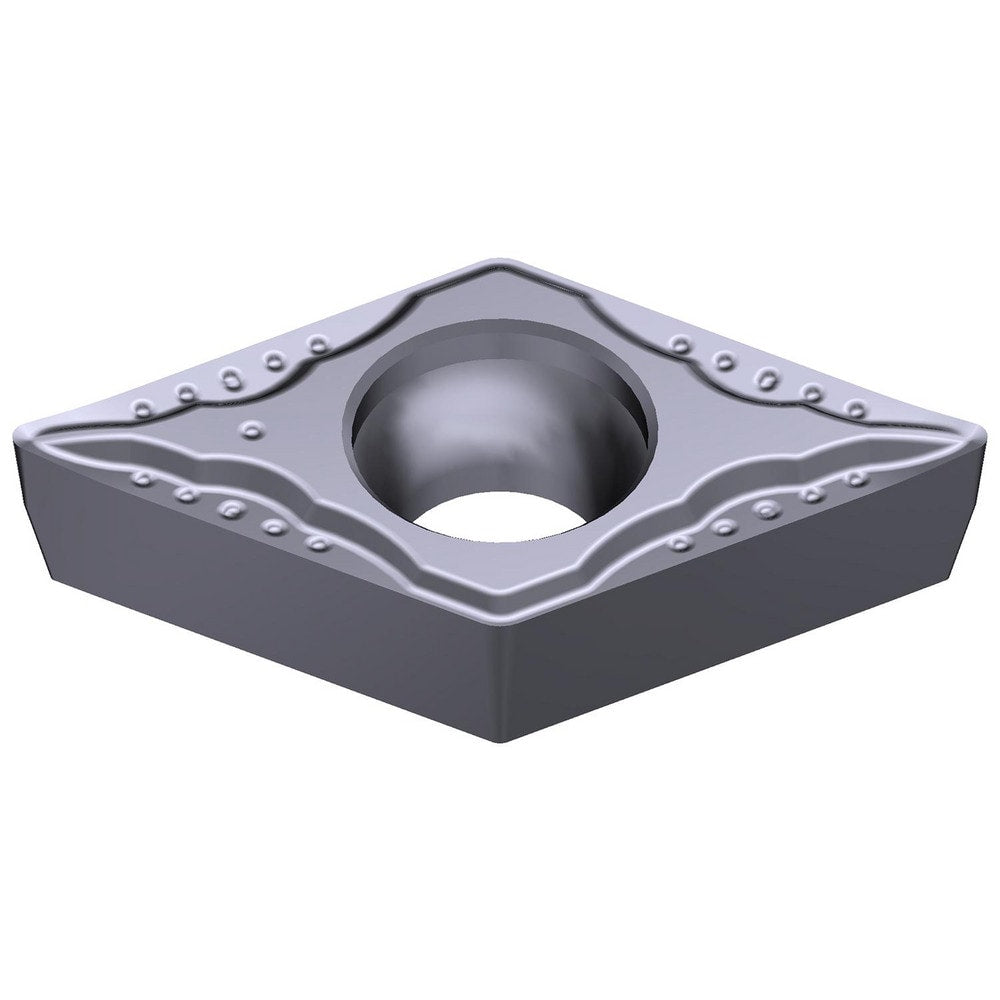

Turning Insert: DCGT2150.5MESI AC5005S, Carbide
Item #: 14599575
Brand: Sumitomo
Model #: 1NW2009
Product Specifications
| ANSI Insert Code | DCGT21.50.5 |
| ISO Insert Code | DCGT070202 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | AC5005S |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | AC5005S |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Light Machining; Medium Machining |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3031 |
| Primary Workpiece Material Code | S |
| Iso Code | DCGT070202MN-SI |
| Manufacturers Catalog Number | DCGT21.50.5MESI-AC5005S |
| Chip Breaker | MESI |
| ANSI Size Code | 21.50.5 |
| ISO Size Code | 070202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
