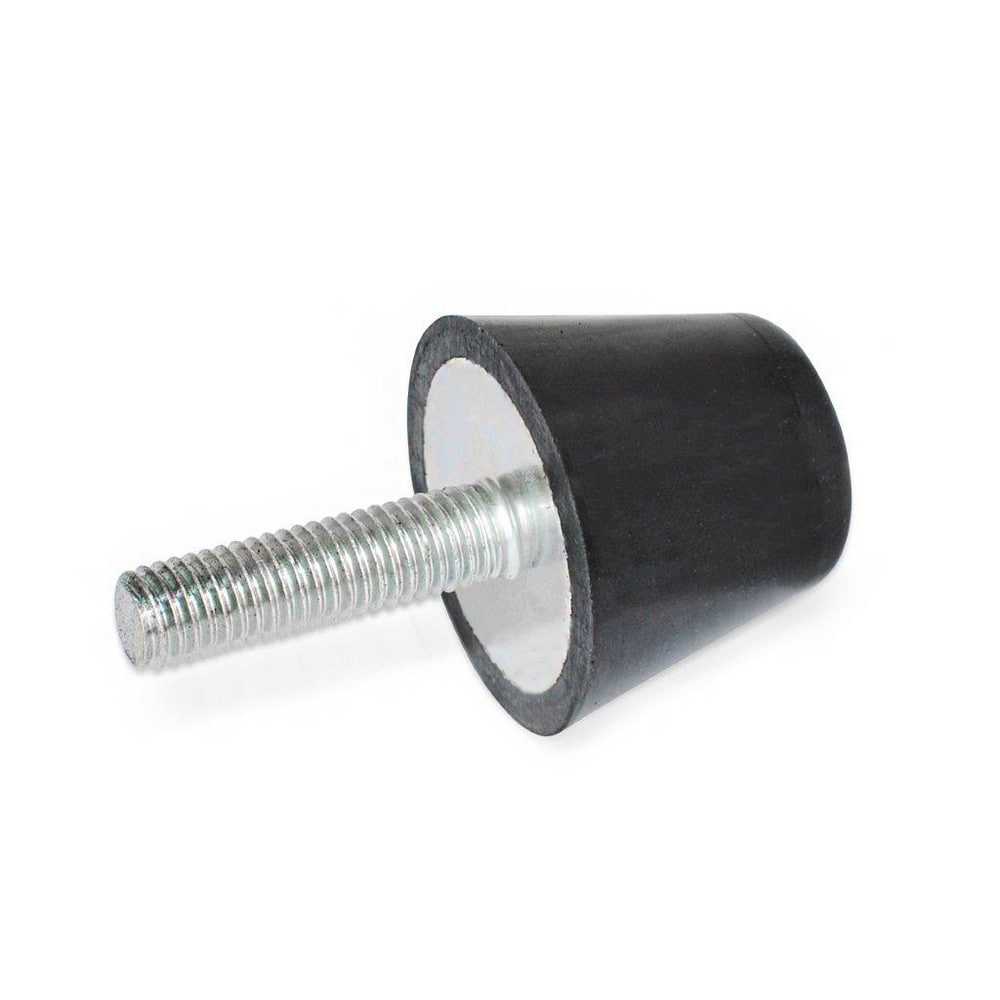

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 430.00 N; Top Diameter: 25.00; Bottom Diameter: 17; Thread Size: 1/4-20; Overall Width: 25 mm
Item #: 71803746
Brand: J.W. Winco
Model #: 253-25-1/4X20-12.7-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 430.00 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 17 |
| Thread Size | 1/4-20 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.5000 |
| Deflection | 0.2100 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 33.2 mm |
| UNSPSC Code | 23153130 |
| Country of Origin | Hungary |
