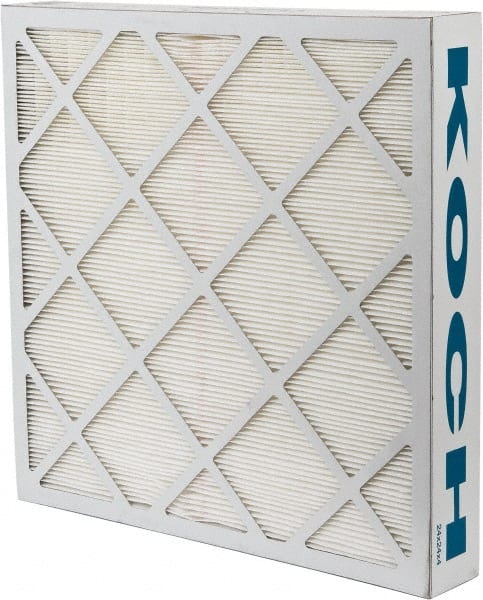

Made in USA - 24" Noml Height x 24" Noml Width x 4" Noml Depth, 95% Capture Efficiency, Wireless Pleated Air Filter - MERV 14, Microfiberglass Paper, Integrated Beverage Board Frame, 500 Max FPM, 2,000 CFM, For Any Unit
Item #: 32977084
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Filter Type | Wireless Pleated |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 4 |
| Particle Capture Efficiency (%) | 95 |
| MERV Rating | 14 |
| Media Material | Microfiberglass Paper |
| Integrated Frame | Yes |
| Actual Height (Inch) | 23-3/8 |
| Actual Height (Decimal Inch) | 23.380 |
| Actual Width (Inch) | 23-3/8 |
| Actual Width (Decimal Inch) | 23.380 |
| Actual Depth (Inch) | 3-3/4 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 2000 |
| Initial Resistance at FPM (Inches w.g.) | 0.68 |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 200 |
| Capacity | High |
| Frame Material | Beverage Board |
| Features | Mini-Pleat |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2-2012 |
