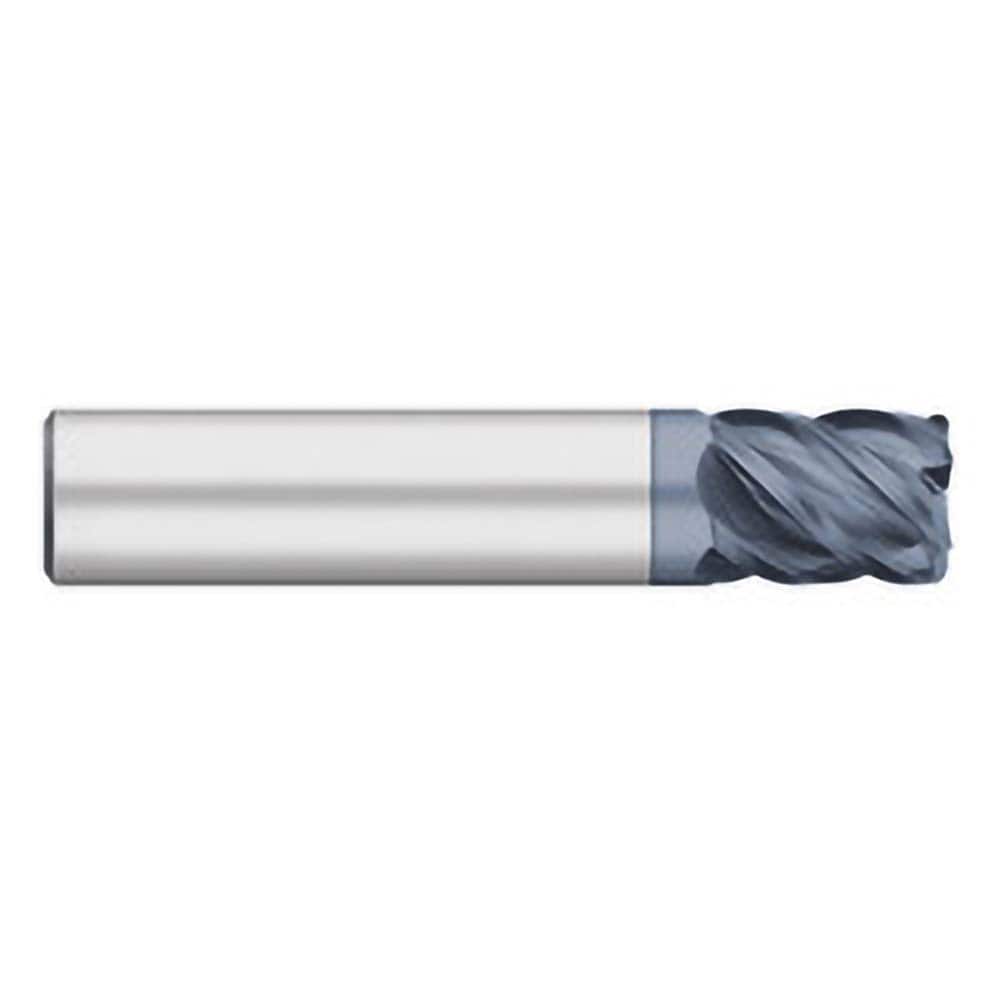

Corner Radius End Mill: 1/8″ Dia, 1/4″ LOC, 0.01″ Radius, 5 Flutes, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 45 ° Helix, AlTiN Coated, Corner Radius End, Centercutting
Item #: 33105669
Brand: Titan USA
Model #: TC61708
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Length of Cut (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
