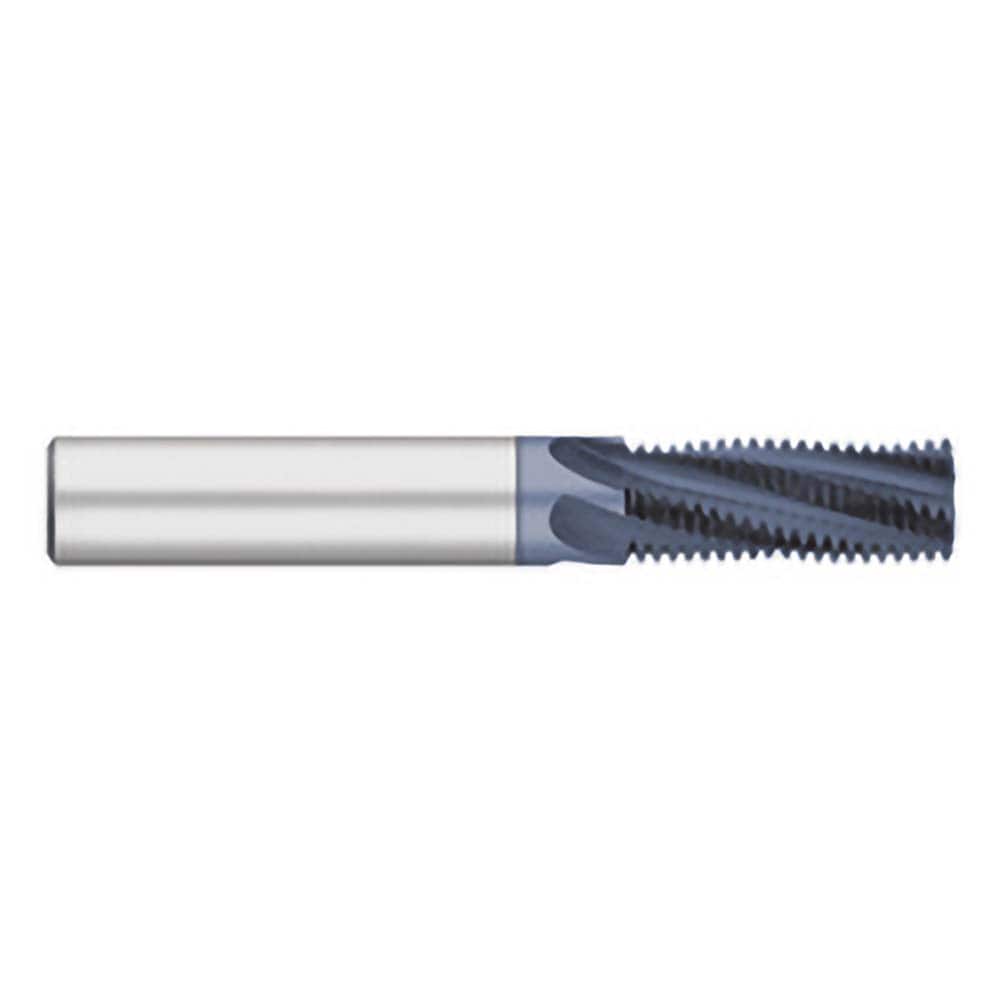

Titan USA - M5 X 0.8 Internal/External 0.8mm Pitch 3/16" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33118969
Brand: Titan USA
Model #: TC84624
Product Specifications
| Pitch (mm) | 0.80 |
| Material | Solid Carbide |
| Thread Size (mm) | M5 X 0.8 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1200 |
| Length of Cut (Decimal Inch) | 0.3120 |
| Length of Cut (Inch) | 5/16 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter (mm) | 5 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
