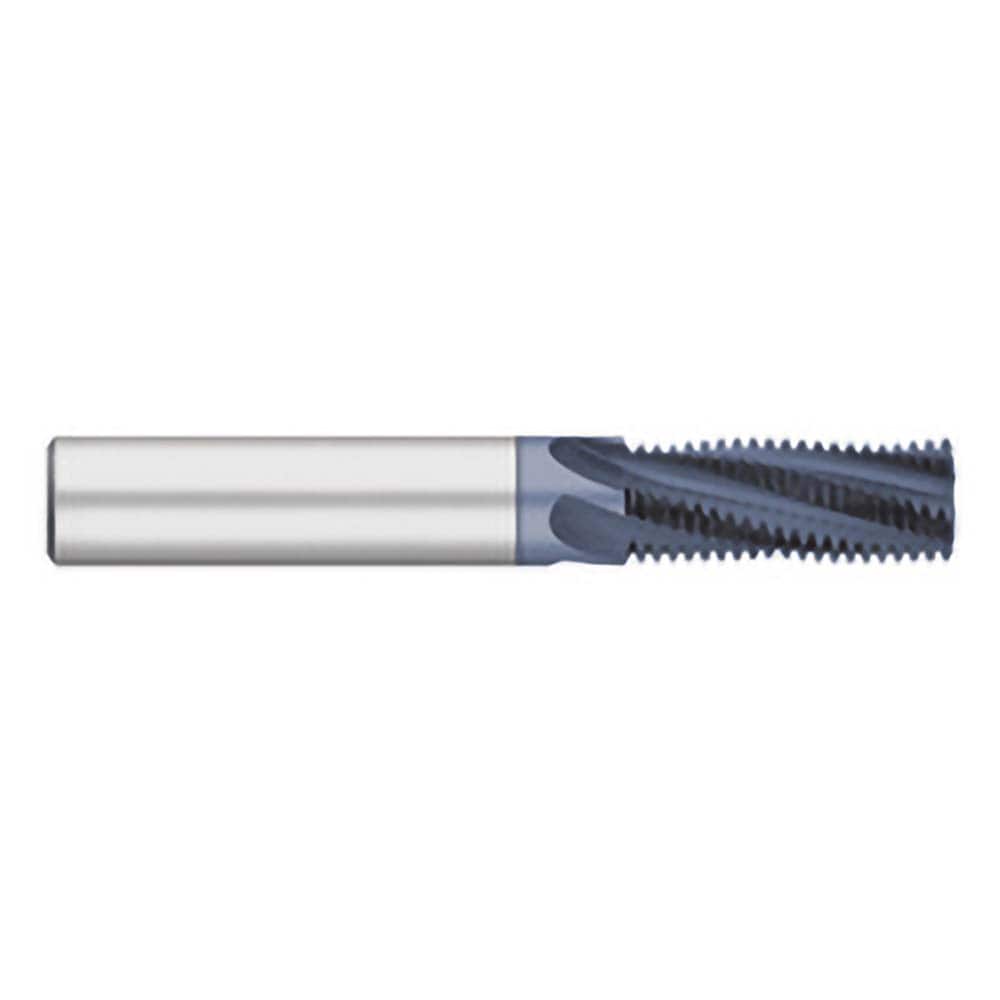

Titan USA - 1/2-14 Internal/External 14 TPI 1/2" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119017
Brand: Titan USA
Model #: TC84409
Product Specifications
| Threads Per Inch | 14 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/2-14 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.4950 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 1/2 |
| Minimum Nominal Diameter (Decimal Inch) | 0.50000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
