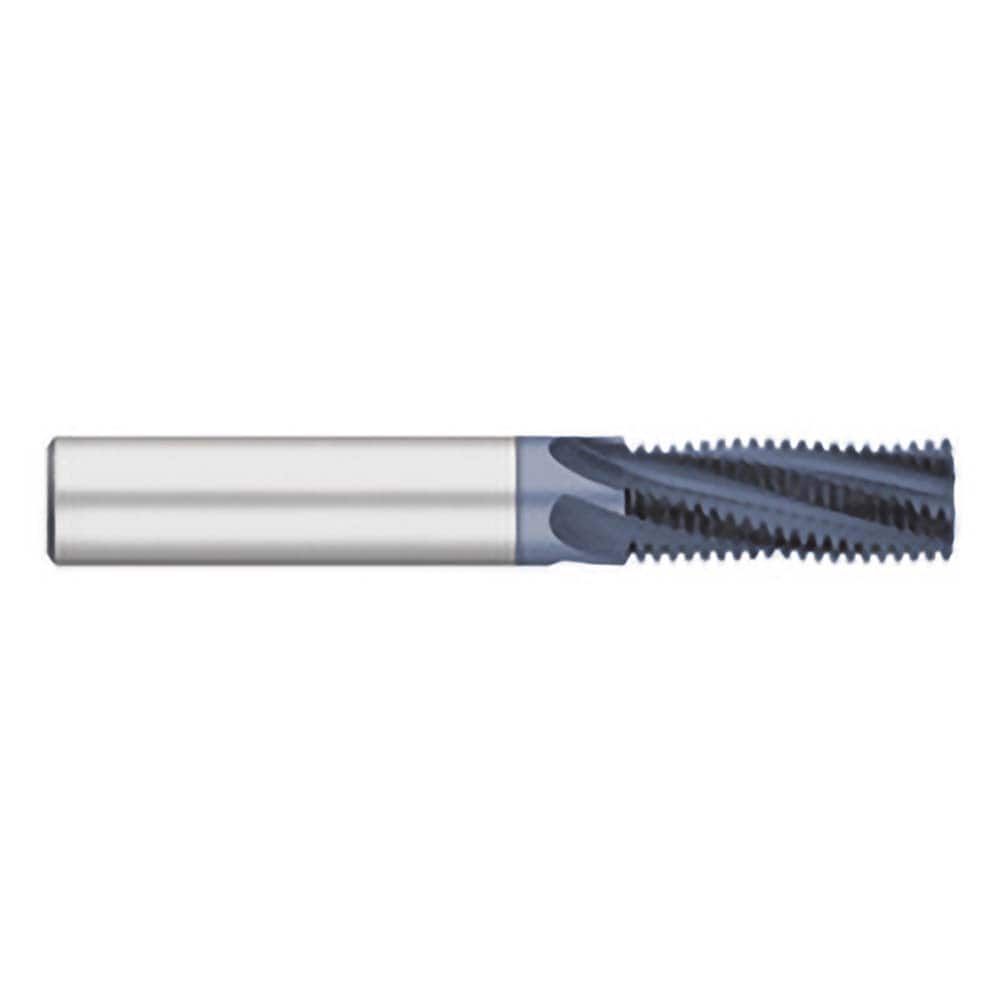

Titan USA - 1/8-27 Internal/External 27 TPI 5/16" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119033
Brand: Titan USA
Model #: TC84403
Product Specifications
| Threads Per Inch | 27 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1/8-27 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3100 |
| Length of Cut (Decimal Inch) | 0.4370 |
| Length of Cut (Inch) | 7/16 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 1/8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.12500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
