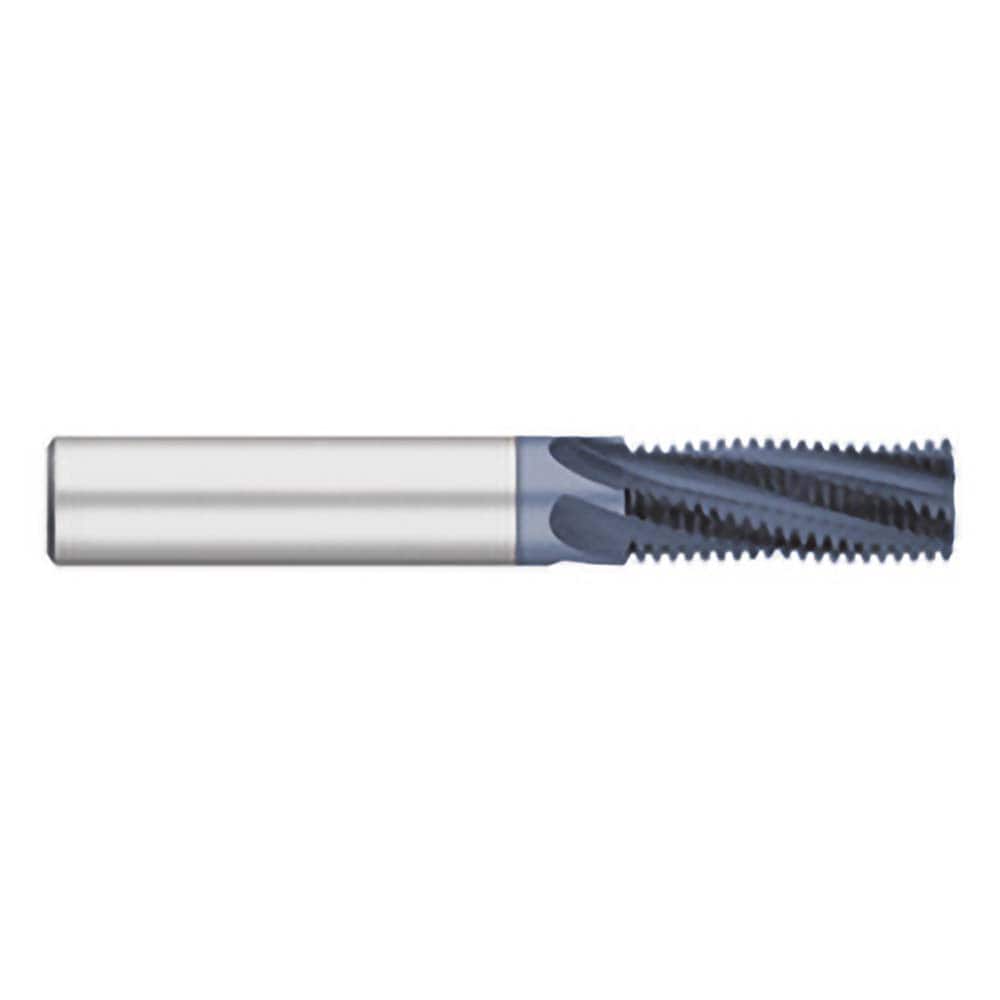

Titan USA - 1 -12 Internal/External 12 TPI 3/4" Shank 5-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119140
Brand: Titan USA
Model #: TC84049
Product Specifications
| Threads Per Inch | 12 |
| Material | Solid Carbide |
| Thread Size (Inch) | 1 -12 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.6200 |
| Length of Cut (Decimal Inch) | 1.3750 |
| Length of Cut (Inch) | 1-3/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 1 |
| Minimum Nominal Diameter (Decimal Inch) | 1.00000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
