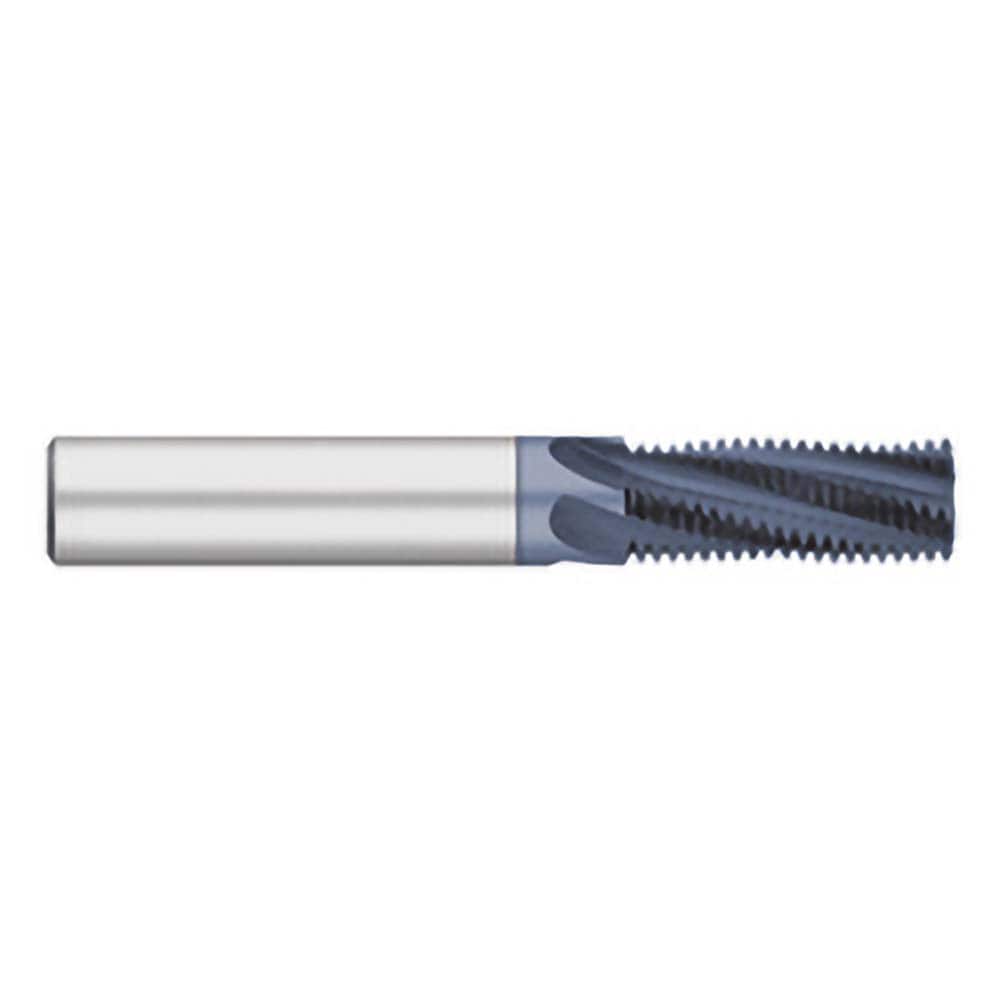

Titan USA - 5/8 -11 Internal/External 11 TPI 1/2" Shank 5-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119207
Brand: Titan USA
Model #: TC84035
Product Specifications
| Threads Per Inch | 11 |
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8 -11 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.4700 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 5/8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.62500 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
