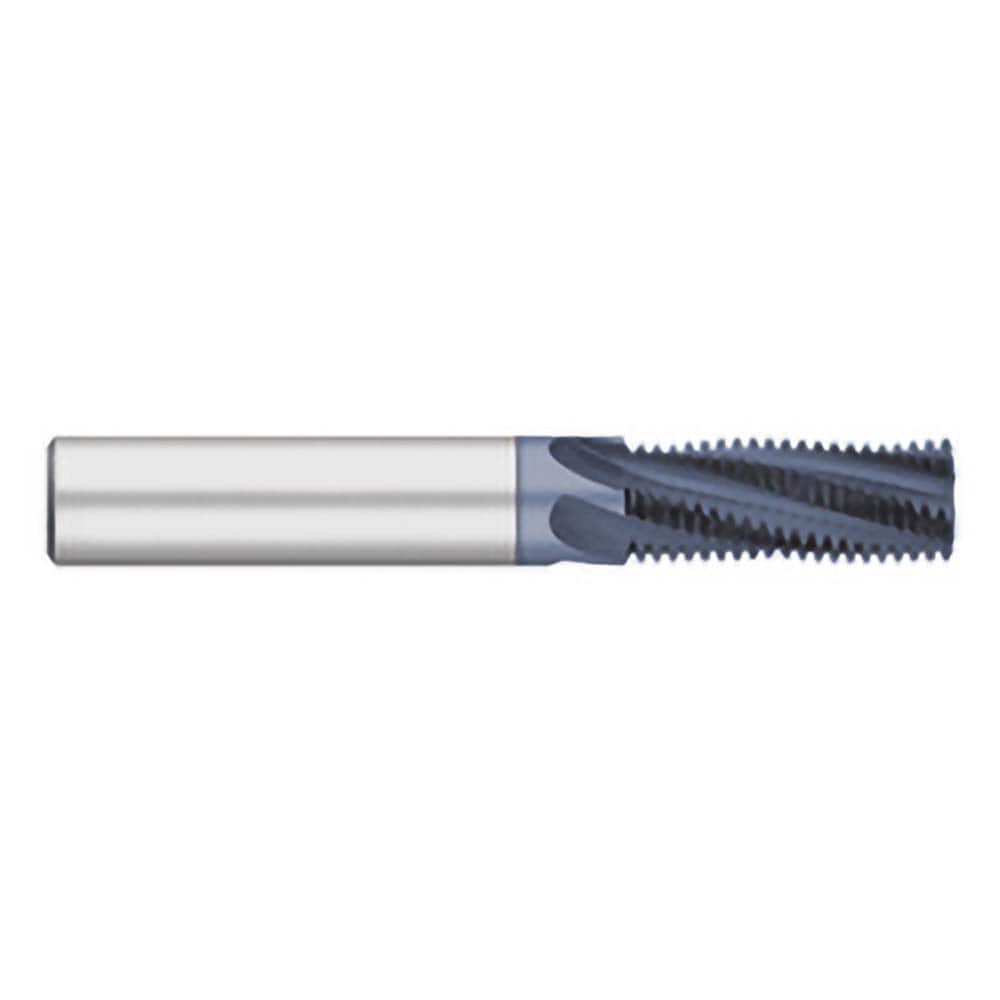

Titan USA - 9/16-12 Internal/External 12 TPI 1/2" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119223
Brand: Titan USA
Model #: TC84031
Product Specifications
| Threads Per Inch | 12 |
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-12 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3700 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 9/16 |
| Minimum Nominal Diameter (Decimal Inch) | 0.56250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
