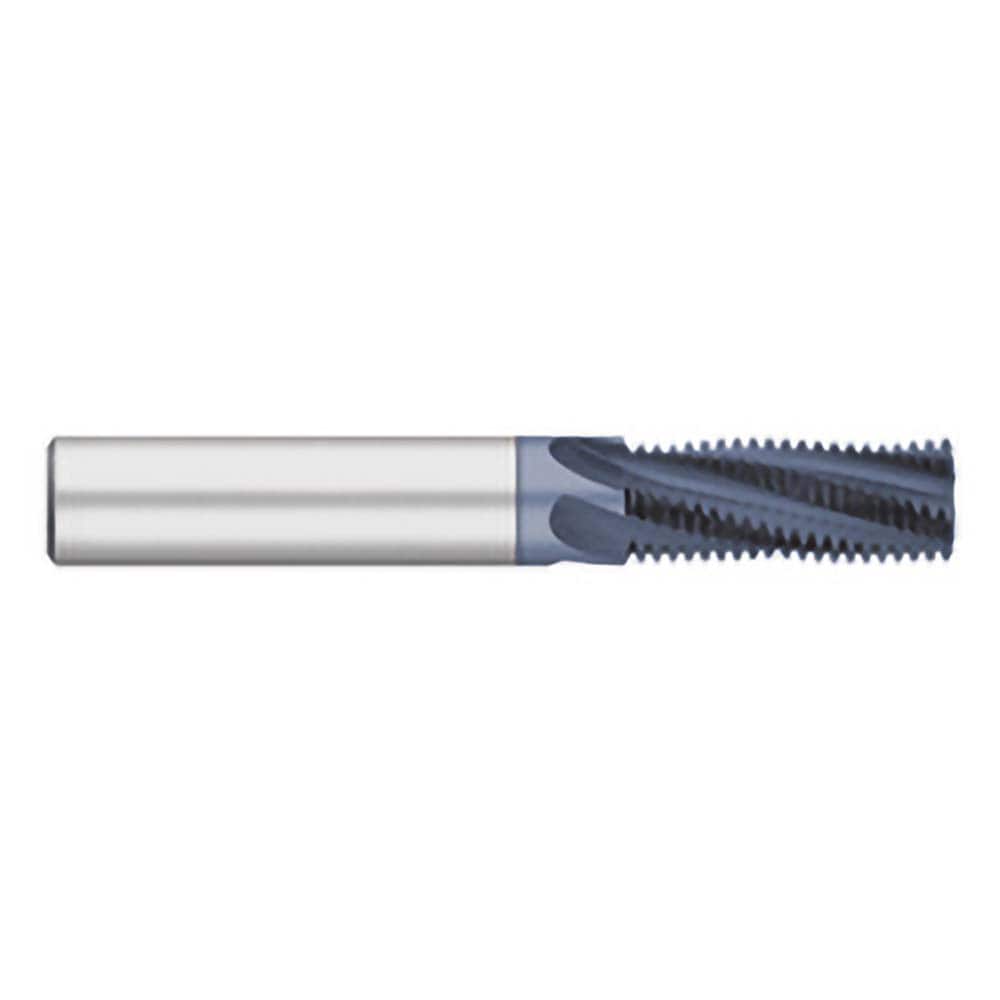

Titan USA - 5/16 - 24 Internal/External 24 TPI 1/4" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 33119298
Brand: Titan USA
Model #: TC84017
Product Specifications
| Threads Per Inch | 24 |
| Material | Solid Carbide |
| Thread Size (Inch) | 5/16 - 24 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.2400 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 5/16 |
| Minimum Nominal Diameter (Decimal Inch) | 0.31250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
