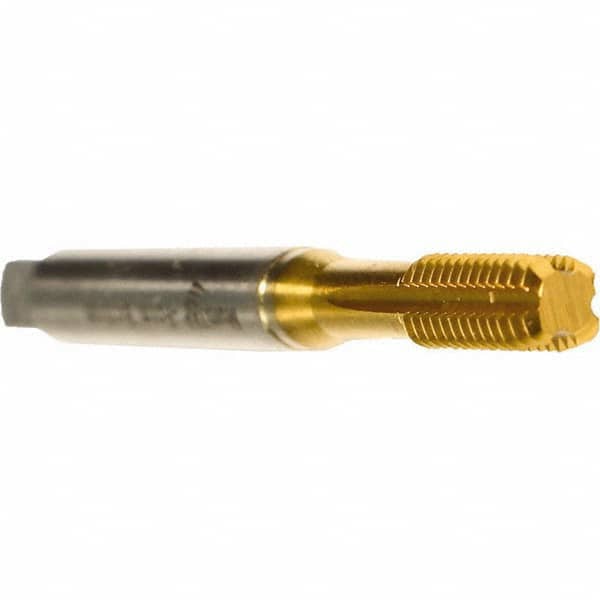

Emuge - M8x1.25 Metric 6H Bottoming Thread Forming Tap - Cobalt, TiN Finish, 90mm OAL, 20mm Thread Length, Right Hand Thread, Series Druck
Item #: 33233016
Brand: Emuge
Model #: B5991400.0080
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.25 |
| Class of Fit | 6H |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | Cobalt |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Series/List | Druck |
| Tapping Depth (Decimal Inch) | 1.3780 |
| Tapping Depth (mm) | 35 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Shank Length (Decimal Inch) | 2.17 |
| Shank Length (mm) | 55 |
| Material Application | Aluminum Alloys; Copper; Copper Alloys; Stainless Steel; Steel |
