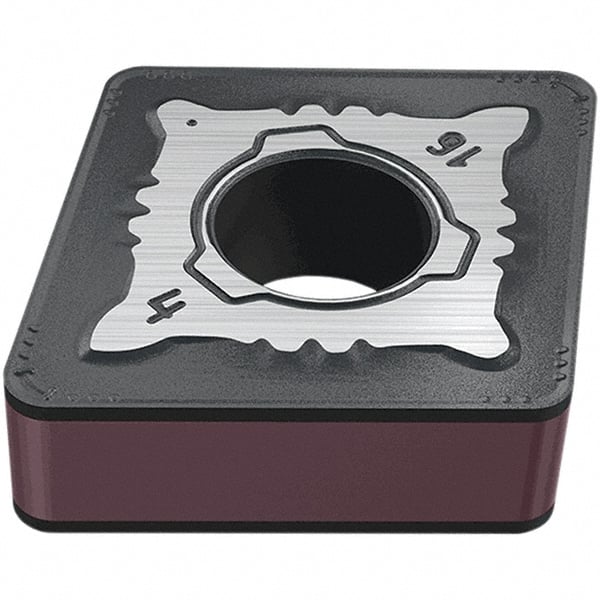

Turning Insert
Item #: 33389131
Brand: Iscar
Model #: 5569068
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 643 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC6025 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Series | Isoturn |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | R3M |
| Coating/Finish | TiCN; TiN; AI2O3 |
