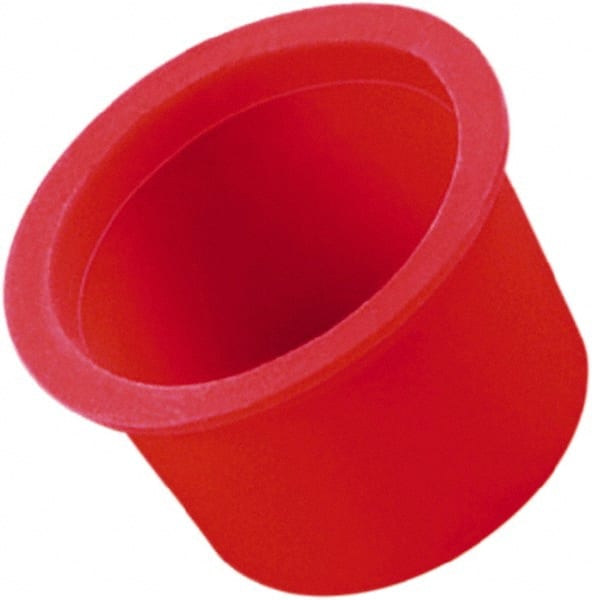

Caplugs - 0.74" ID, Round Head, Tapered Masking Cap/Plug - 1.08" OD, 5/8" Long, Silicone, Red
Item #: 33480179
Brand: Caplugs
Model #: 438331HA
Exact Tooling IR#: 04
Features and Benefits
Silicone is a nonadhesive, self-fusing material that is easy to work with. It is primarily used in high-temperature and temporary applications for insulating and moisture sealing. It can be used where long term exposure to dry heat is expected, but it is limited to static applications. It resists brake fluids and high aniline point oil.
| Product Specifications | |
|---|---|
| Type | Masking Cap/Plug |
| Style | Round Head;Tapered |
| Large End Inside Diameter (Decimal Inch) | 0.8490 |
| Small End Inside Diameter (Decimal Inch) | 0.7400 |
| Outside Diameter (Decimal Inch) | 1.0800 |
| Large End Outside Diameter (Decimal Inch) | 0.9110 |
| Small End Outside Diameter (Decimal Inch) | 0.8020 |
| Length (Inch) | 5/8 |
| Material | Silicone |
| Color | Red |
