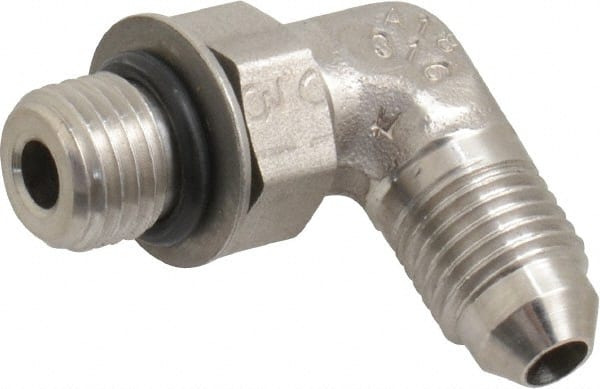

Made in USA - 5/8" Tube OD, 37° Stainless Steel Flared Tube Straight Thread Elbow - 7/8-14 UNF, Flared to Male SAE O-Ring Ends
Item #: 33662297
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Straight Thread Elbow |
| Flared Degrees | 37 |
| End Connections | Flared to Male SAE O-Ring |
| Thread Size | 7/8-14 |
| Tube Outside Diameter (Inch) | 5/8 |
| Thread Type | UNF |
| Material | Stainless Steel |
| Material Grade | 316 |
| Max Working Pressure Dynamic | 5400 |
| Hex Size (Inch) | 1 |
| PSC Code | 4720 |
