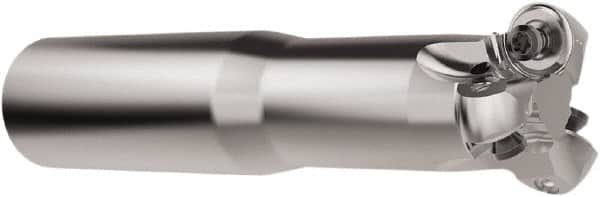

Seco - 1-1/4" Cutting Diam, 1" Shank Diam, 6mm Max Depth of Cut, Weldon Indexable Copy End Mill - 3 Inserts, RNMU12.. Insert, R217.28 Toolholder, Steel, Through Coolant
Item #: 33713306
Brand: Seco
Model #: 48327
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Shank Type | Weldon |
| Shank Taper Size | None |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 3 |
| Insert Style | RNMU12.. |
| Toolholder Style | R217.28 |
| Series | R217 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.7813 |
| Insert Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Maximum RPM | 15600 |
