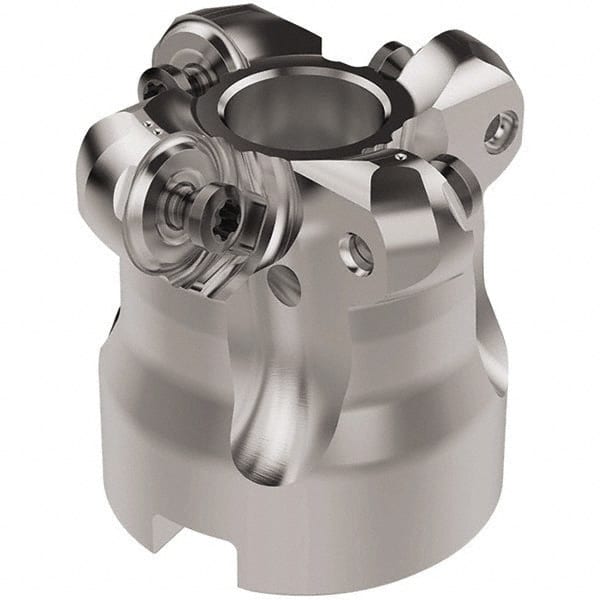

Seco - 40mm Cut Diam, 6mm Max Depth, 16mm Arbor Hole, 4 Inserts, RNMU12.. Insert Style, Indexable Copy Face Mill - R220.28 Cutter Style, 14,000 Max RPM, 40mm High, Through Coolant, Series R220
Item #: 33713975
Brand: Seco
Model #: 48183
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 40.00 |
| Series | R220 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RNMU12.. |
| Cutter Style | R220.28 |
| Through Coolant | Yes |
| Maximum RPM | 14000 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 35.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 8.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 1.5748 |
