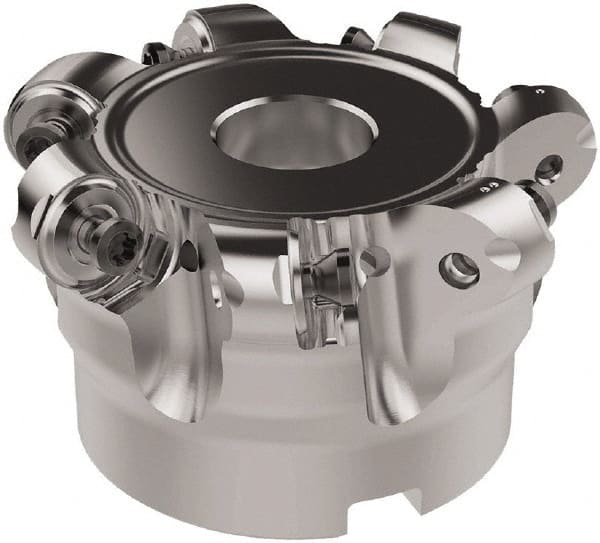

Seco - 2-1/2" Cut Diam, 6mm Max Depth, 3/4" Arbor Hole, 7 Inserts, RNMU12.. Insert Style, Indexable Copy Face Mill - R220.28 Cutter Style, 11,200 Max RPM, 1-1/2 High, Through Coolant, Series R220
Item #: 33714262
Brand: Seco
Model #: 48332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Inch) | 1-1/2 |
| Overall Height (Decimal Inch) | 1.5000 |
| Series | R220 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RNMU12.. |
| Cutter Style | R220.28 |
| Through Coolant | Yes |
| Maximum RPM | 11200 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 47.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 8.2000 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 2.5000 |
