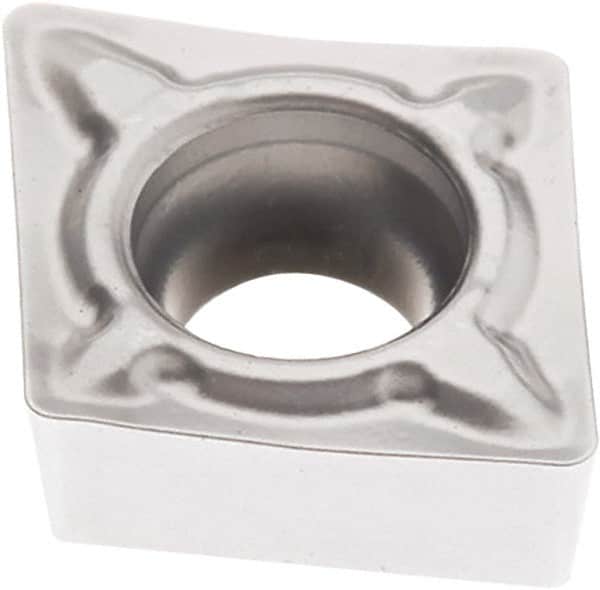

Seco - CCMT21.50 F1 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.2mm Corner Radius
Item #: 33725193
Brand: Seco
Model #: 49290
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.50 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.20 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | F1 |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
