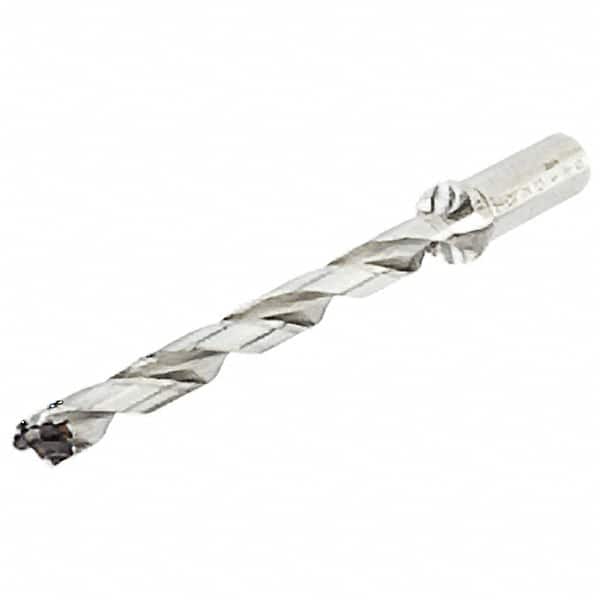

Iscar - 0.354 to 0.37" Diam, 12xD, 4.32" Max Drill Depth, 1/2" Shank Diam, 6.64" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 9 Seat Size, DCN Toolholder, Series SumoCham
Item #: 33729807
Brand: Iscar
Model #: 3202825
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3540 |
| Maximum Drill Diameter (Decimal Inch) | 0.3700 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 4.3200 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 9 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0650 |
| Flute Length (Decimal Inch) | 4.3200 |
| Body Length (Decimal Inch) | 4.8700 |
| Overall Length (Decimal Inch) | 6.6400 |
| Shank Length (Decimal Inch) | 1.7700 |
