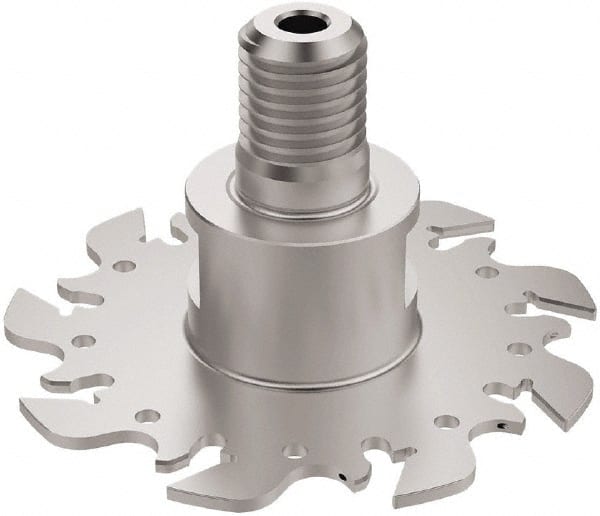

Seco - Modular Connection Connection, 0.0886 to 0.0984" Cutting Width, 0.9488" Depth of Cut, 80mm Cutter Diam, 9 Tooth Indexable Slotting Cutter - R335.10 Toolholder, 150.10 Insert, Right Hand Cutting Direction
Item #: 33746561
Brand: Seco
Model #: 61043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Cutting Width (Decimal Inch) | 0.0886-0.0984 |
| Cutting Width (mm) | 2.25-2.50 |
| Maximum Depth of Cut (mm) | 24.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.9488 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1500 |
| Modular Connection Size | M16 |
| Number of Teeth | 9 |
| Toolholder Style | R335.10 |
| Series | R335.10 |
| Insert Style | 150.10 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 9 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 1980 |
| Number of Flutes | 9 |
| Minimum Cutting Width (Decimal Inch) | 0.0886 |
| Maximum Cutting Width (Decimal Inch) | 0.0984 |
| Hub Diameter (mm) | 30.00 |
| Radius | No |
| Lead Angle | 0/90 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Overall Height (mm) | 23.00 |
