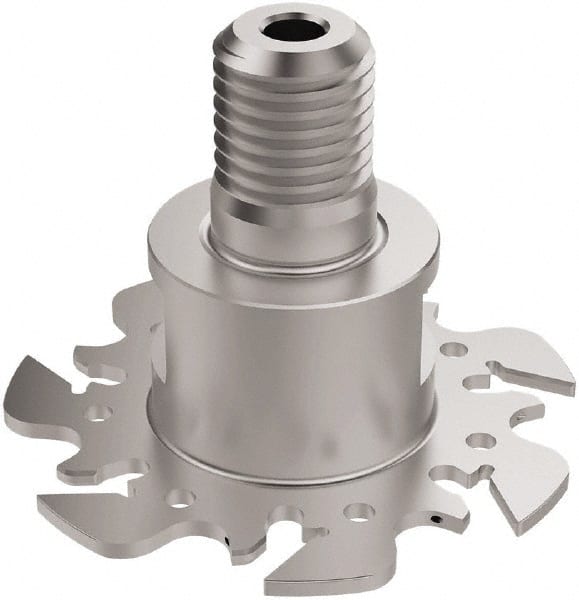

Seco - Modular Connection Connection, 0.122" Cutting Width, 5/8" Depth of Cut, 63mm Cutter Diam, 7 Tooth Indexable Slotting Cutter - R335.10 Toolholder, 150.10 Insert, Right Hand Cutting Direction
Item #: 33746637
Brand: Seco
Model #: 61036
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Cutting Width (Decimal Inch) | 0.1220 |
| Cutting Width (mm) | 3.10 |
| Maximum Depth of Cut (mm) | 15.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.6260 |
| Cutter Diameter (mm) | 63.00 |
| Modular Connection Size | M16 |
| Number of Teeth | 7 |
| Toolholder Style | R335.10 |
| Series | R335.10 |
| Insert Style | 150.10 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 7 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 2520 |
| Number of Flutes | 7 |
| Minimum Cutting Width (Decimal Inch) | 0.1220 |
| Maximum Cutting Width (Decimal Inch) | 0.1220 |
| Hub Diameter (mm) | 30.00 |
| Radius | No |
| Lead Angle | 0/90 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Overall Height (mm) | 23.00 |
