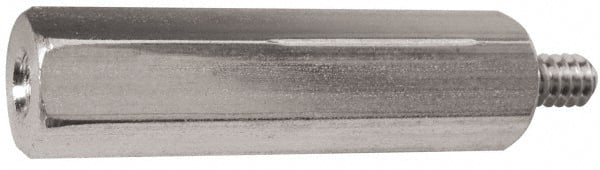

Electro Hardware - M5x0.8, 29.53mm OAL, 8mm Across Flats, Stainless Steel Male/Female Hex Circuit Board Standoff
Item #: 95758892
Brand: Electro Hardware
Model #: MMF2131M09F16M5
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 29.53 |
| Thread Style | Fully Threaded |
| Thread Size | M5x0.8 |
| Width Across Flats (mm) | 8.00 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 20.00 |
| Thread Length (mm) | 9.53 |
| Thread Depth (mm) | 12.70 |
| Material Grade | Grade 303 |
