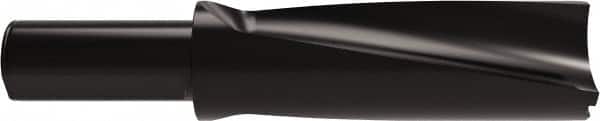

Allied Machine and Engineering - Series APX 76, Head Connection 00, 3xD, 2" Diam Shank, Drill Body - 11.5156" Body Length to Flange, W7603H Toolholder, 82.99mm Nose Diam, 16.0156" OAL, Through Coolant
Item #: 33831793
Brand: Allied Machine and Engineering
Model #: W7603H-200F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | APX 76 |
| Head Connection Size | 00 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 2 |
| Drill Body Length to Flange (Decimal Inch) | 11.5156 |
| Toolholder Style | W7603H |
| Nose Diameter (mm) | 82.99 |
| Nose Diameter (Decimal Inch) | 3.2673 |
| Overall Length (Decimal Inch) | 16.0156 |
| Gage Length (Decimal Inch) | 11.5156 |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | NPT |
